| BASIC
INFO |
| Model No. |

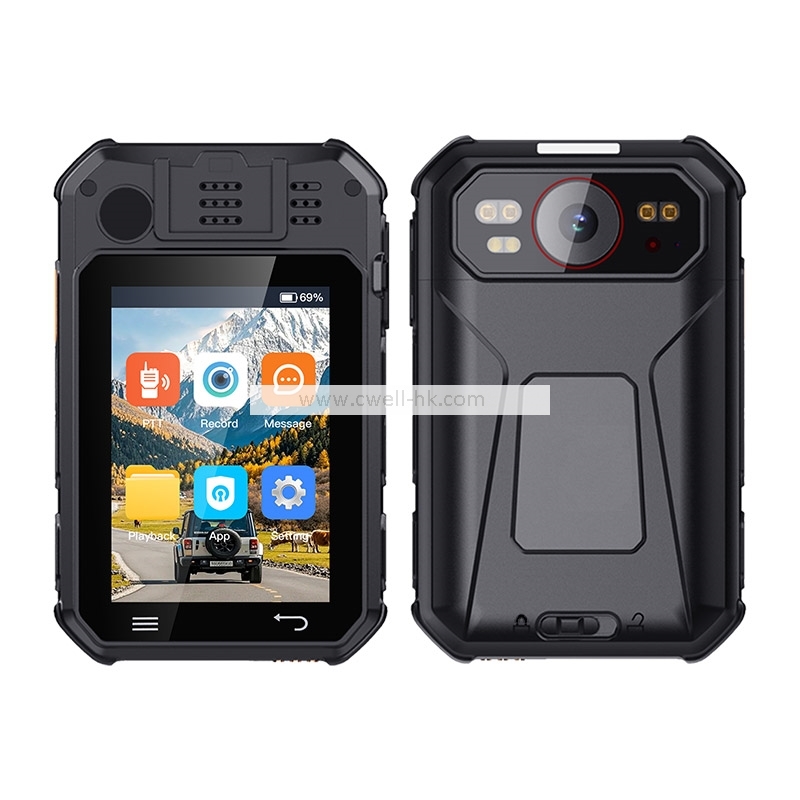

UNIWA
BC001 |
| Product Name |
2.4
Inch 4G Android Smart Body Camera IP66 Waterproof with IR Night Vision and
PTT |
| Operating system |
Android
12.0 |
| Dimension |
91.8*59.8*25.3mm |
| Net Weight |
171g |
| Shell Material |
Plastic |
| Color |
Black |
| Languages |
Multi-language |
| HARDWARE |
| Screen |
2.4
inch IPS capacitive touch screen, 640*480px, 350cd/m2 |
| Processor |
Mediatek
MT6769 Helio G85 Octa Core, 2.0GHz; GPU:Mali-G57 MC2, 2133MHz |
| RAM |
2GB
RAM |
| ROM |
16GB
ROM, support TF card extension up to 512GB maximally |
| Battery |
Removable
3050mAh lithium-ion battery; built-in 60mAh sub-battery for hot-swap |
| Speaker |
1.5W*1 |
| Microphone |
Dual
microphones with noise cancellation |
| Buttons |
PTT,
Power, Video recording, Audio recording, Snapshot, Event tag, Customized key |
| LED Indicator |
Red/blue |
| NETWORK
& CONNECTIVITY |
| Network Bands |
3G:
WCDMA B1/B5/B8 |
| 4G: FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B28A;
TDD-LTE: B34/B38/B39/B40/B41 |
| Wi-Fi |
IEEE
802.11 ac/a/b/g/n, support 2.4GHz/5GHz dual band wifi |
| BT |
V5.0 |
| GNSS |
Support
GPS |
| CAMERA
& VIDEO FUNCTIONS |
| Main Camera |
1/3"
progressive scan CMOS, 1920×1080@30fps; typically paired with 2.8mm/F2.0
lens, auto IR-cut filter |
| Video
Compression |
H.264,
H.265 (requires backend encoder; saves up to 50% bandwidth & storage) |
| Image
Resolution |
Native
up to 2MP (1920×1080); up to 64MP via backend interpolation |
| Video
Format |
MP4,
PS |
| Pre/Post-recording |
Optional:
60/10/5/3 seconds |
| Audio
Compression |
Video:
AAC, G711; Audio: MP3, AMR, WAE; Intercom: OPUS, G711 |
| IR
Night Vision |
Supported,
typical IR range up to 10 m, illumination uniformity >90% |
| Image
Stabilization |
EIS |
| White
Light Illuminator |
Built-in |
| Laser
Light |
Optional |
| I/O
INTERFACES |
| Nano SIM Slot |
*1 |
| TF Card Slot |
*1 |
| USB Type-C Port |
*1 |
| Pogo Pin/Charging Contacts |
*1 |
| OTHER
FUNCTIONS |
| PoC / Group Intercom |
Support
cluster PTT intercom (OPUS, G711) |
| SOS function |
SOS
alarm |
| Face Recognition |
Built-in
algorithm, offline alarm (optional) |
| License Plate Recognition |
Optional |
| QR Code Scanning |
Support |
| TTS Voice Broadcast |
Optional |
| File Upload to Cloud |
Support
OSS object storage, breakpoint resume |
| Video Intercom |
Multi-device
video call (optional) |
| Voice Call |
Multi-device
voice call (optional) |
| Message Delivery |
Platform-to-device
messages, files (optional) |
| External Camera |
Support
up to 1080p USB camera (optional) |
| Software Upgrade |
OTA
firmware/app upgrade |
| Security |
AES256
encryption, watermark |
| RELIABILITY |
| Waterproof |
IP66 |
| Drop-proof |
Up
to 2m drop protection |
| Temperature range |
Operating:
-10℃ to +55℃; Humidity: 40% – 90% |
| ACCESSORIES |
| Power Adaptor (5V/2A) |
*1 |
| Battery |
*1 |
| USB cable (Type-C) |
*1 |
| Shoulder Clip |
*1 |
| User Manual |
*1 |
| Dock charger |
Optional |
