| BASIC
INFO |
| Model No. |

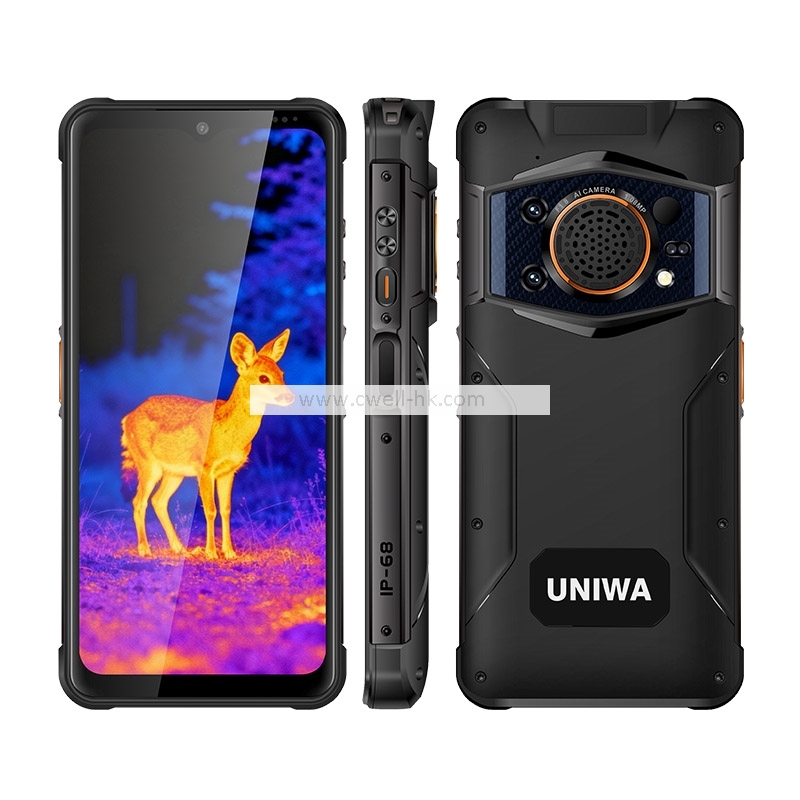

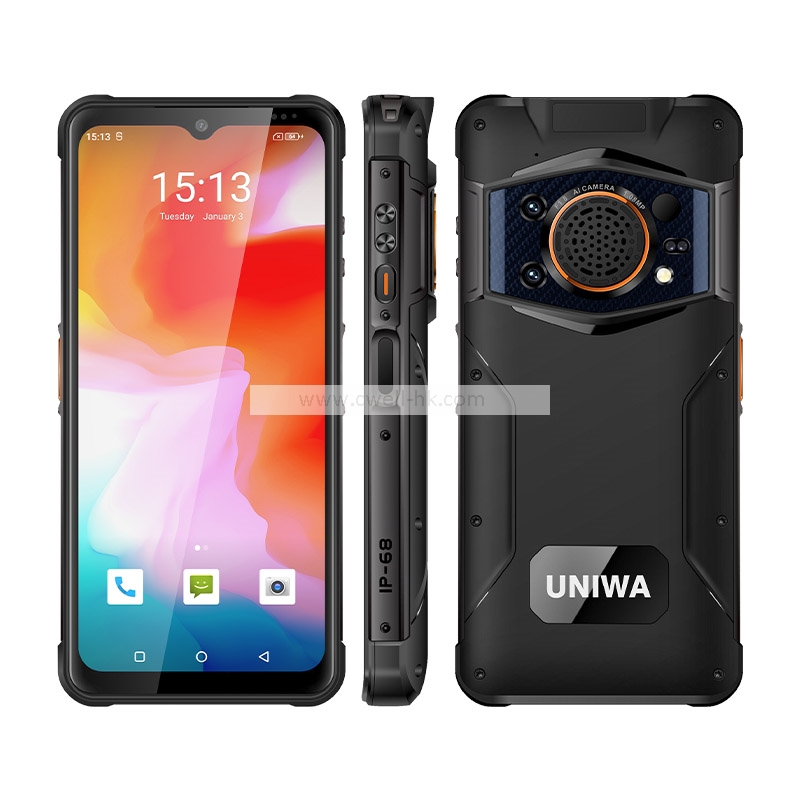

UNIWA NR6600 |
| Product Name |
6.6 Inch FHD 5G
Rugged Smartphone with 12GB RAM 256GB ROM and Optional Thermal Imaging |
| Operation
System |
Android 12.0 |
| Dimension |
169.6*79*17.5mm |
| Net Weight |
374g (include
battery) |
| Shell Material |
Zinc Alloy + Plastic
In-Mold Injection |
| Color |
Black |
| Languages |
Multi-languages |
| HARDWARE |
| Screen |
6.6 inch FHD+ glove
touch IPS capacitive touch screen, 1080*2408px, 480ppi, gesture operation |
| Processor |
MediaTek Dimensity
7050 octa core, 2*A78 2.6GHz + 6*A55 2.0GHz; GPU: Mali-G68 MC4 |
| RAM |
12GB LPDDR4X,
optional 8GB/6GB |
| ROM |
256GB UFS2.1,
optional 512GB/128GB |
| Camera |
Quad cameras: 32MP FF
front; 108MP AF main+ 16MP ultra-wide angle + 2MP macro with flashlight |
| Battery |
Built-in
4.45V/8000mAh explosion-proof lithium battery |
| Sensors |
Acceleration sensor,
proximity sensor, light sensor, magnetic sensor, gyroscope sensor, barometer |
| Keys |
Power, Volume +/–,
PTT key, Custom FN key |
| Speaker |
3W BOX speaker |
| NETWORK &
CONNECTIVITY |
| Network
Bands |
2G: GSM
850/900/1800/1900MHz |
| 3G: WCDMA 850/900/1900/2100MHz |
| 4G: FDD-LTE B1/B3/B5/B7/B8; TDD-LTE: B34/B38/B39/B40/B41 |
| 5G: N1/N3/N5/N7/N8/N28/N38/N41/N77/N78/N79 |
| WiFi |
IEEE 802.11
a/b/g/n/ac/ax, support WiFi 6 |
| BT |
V5.1 |
| NFC |
13.56MHz, supports ID
card recognition |
| GNSS |
Support
GPS/Beidou/Glonass/Galileo/QZSS |
| I/O INTERFACES |
| SIM Card slots |
*2 (Nano+Nano or
Nano+TF) |
| USB Type-C 3.0 |
*1 |
| OTHER FEATURES |
| OTG Function |
Support reverse
charging |
| Fingerprint
Unlock |
Side mounted sensor |
| Digital
Toolbox |
Support |
| 33W Fast
Charging |
Support |
| Wireless Radio |
Support |
| OPTIONAL FUNCTIONS |
| Thermal
Imaging Camera |
Optional:
256*192@12μm WLP 25Hz High Frame Rate |
| 2D Barcode
Scanner |
Optional (Newland
CM30) |
| Single Beidou
Navigation |
Optional: Zhongke
Micro 336/10*10mm |
| RELIABILITY |
| Waterproof |
IP68 waterproof |
| Drop Resistant |
1.5m drop onto
concrete surface |
| Temperature
range |
Working: -20 ℃ to
55℃; Storage: -70 ℃ to 70℃ |
| STANDARD ACCESSORIES |
| Power Adaptor
(33W) |
*1 |
| USB cable |
*1 |
| User Manual |
*1 |
| Charging Dock |
Optional |
