| BASIC INFO |
| Model No. |

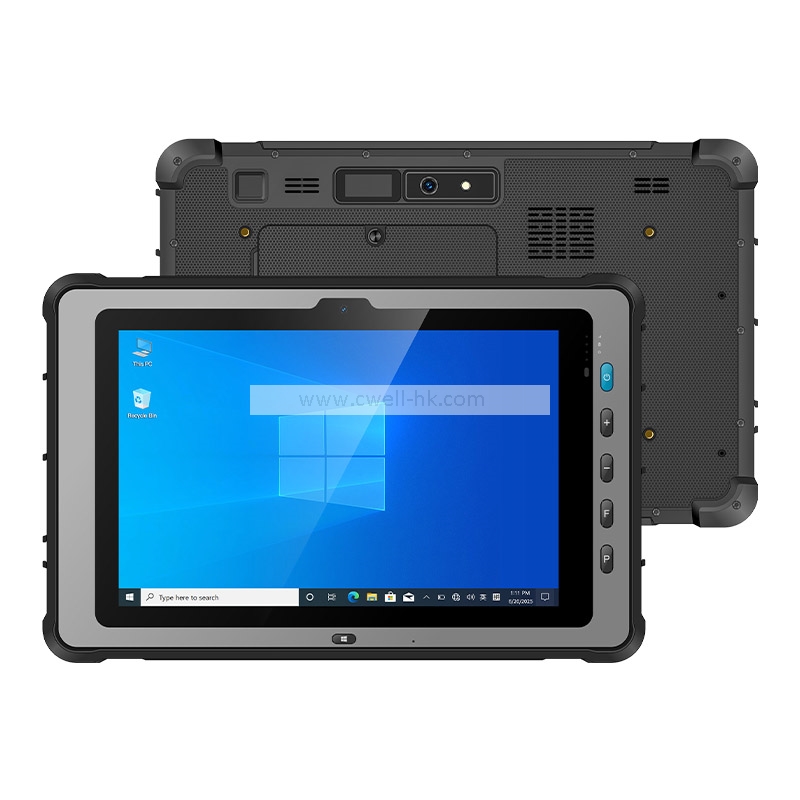

WinPad
W103 |
| Operating system |
Windows
10/11 home/iOT |
| Dimension |
277.48*182.74*21.5mm |
| Weight |
1405g |
| Material |
Metal+Plastic |
| Color |
Black |
| Language |
Multi-language |
| HARDWARE |
| Screen |
10.1
inch 7H IPS capacitive glove touch screen, 1280*800px, 550cd/㎡ (1920*1200 or
1000cd/㎡ optional) |
| Processor |
Intel
Core 12th Generation i5-1235U 10C12T, 4.4GHz; GPU: Iris Xe Graphics eligible (i7-1255U
optional) |
| RAM |
16GB
RAM (32GB optional) |
| ROM |
256GB
ROM (128GB/512GB/1TB/2TB optional), support TF card extension up to 1TB max |
| Camera |
Double
cameras: 8MP AF rear camera, 5MP front camera |
| Battery |
Removable
7.6V/10000mAh lithium polymer battery |
| Sensor |
Gravity
sensor |
| Speaker |
*2,
1.2W/8Ω |
| Mic |
*1,
sensitivity: -32±2d, output impedance: 2.2kΩ |
| Buttons |
Power
Button, Volume+/-, P key, F key |
| LED Indicator |
RGB |
| NETWORK
& CONNECTIVITY |
| Network Bands |
2G:
GSM 900/1800MHz |
| 3G: WCDMA 850/900/2100MHz |
| 4G: FDD-LTE B1/B3/B5/B7/B8/B20; TDD-LTE
B38/B40/B41 |
| WiFi |
IEEE
802.11 a/b/g/n/ac/ax, support wifi6 |
| BT |
V5.2(BLE) |
| GNSS |
UB M7N, support GPS/A-GPS/GLONASS/Galileo/Beidou |
| I/O
INTERFACES |
| USB Type-A 3.0 |
*1 |
| USB Type-C 2.0 |
*1 |
| RJ45 Port (100/1000Mbps) |
*1 |
| DC-IN Port |
*1 |
| Mini HD-MI |
*1 |
| RS232 |
*1 |
| Aviation Connector |
*1
(USB/DC5V/CAN BUS) |
| RS232 |
*1 |
| 3.5mm Audio Jack |
*1 |
| TF Card Slot |
*1 |
| Pogo Pin |
*1 |
| SIM Slot |
*1 |
| Multimedia |
| Image format |
BMP,
JPG, GIF, PNG |
| Video format |
MEPG
1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG (up to 1080P) |
| Audio format |
MP3,
WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS (need license) |
| OPTIONAL
FUNCTIONS |
| NFC |
Optional
(13.56MHz, support 14443A/14443B/15693 protocols etc.) |
| RFID |
Optional
(PR9200, distance 1.5~8 meters) |
| ID Card |
Optional |
| 1D Barcode Module |
Optional
(Zebra SE655) |
| 2D Barcode Module |
Optional
(Honeywell N4680) |
| Active Pen |
Optional |
| RELIABILITY |
| Waterproof |
IP65 |
| Drop-proof |
1.2m |
| Temperature Range |
Operating:
-30℃~60℃; Storage: -40℃~70℃ |
| STANDARD
ACCESSORIES |
| Power adaptor (19V/4A) |
*1 |
| USB Cable |
*1 |
| Hand strap |
Optional |
| Car Mount |
Optional |
| Charging dock |
Optional |
| OTG cable |
Optional |
