| BASIC INFO |
| Model No. |

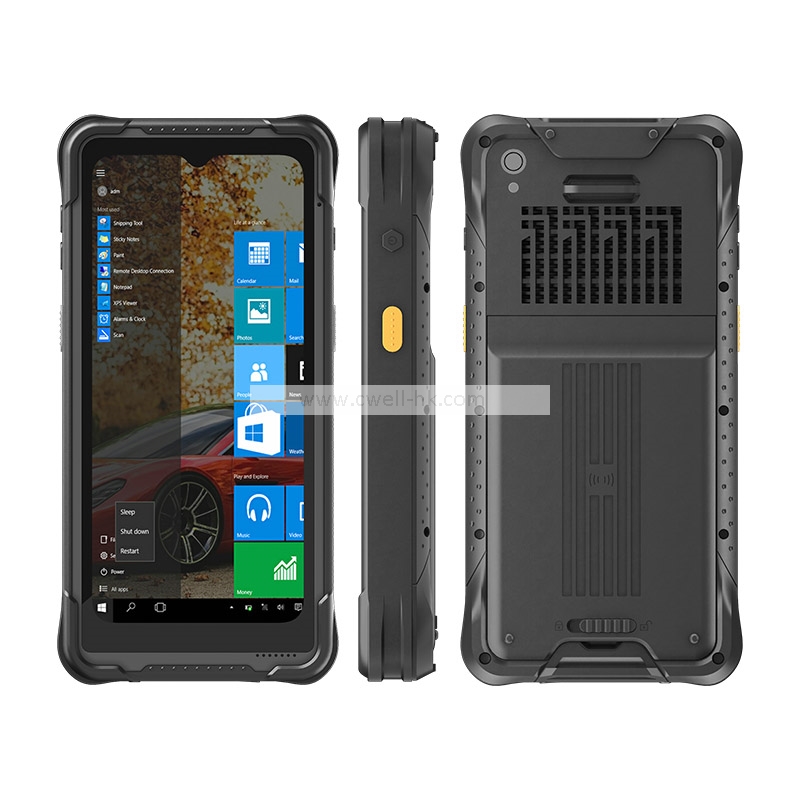

WinPad W650 |
| Operating System |
Win10
or Win11 IOT |
| Dimension |
183.1*88.6*24.1mm |
| Weight |
470g (include battery) |
| Material |
ABS+PC+Metal |
| Color |
Black |
| Language |
Multi-language |
| HARDWARE |
| Display |
6.5
inch Corning Gorilla Glass waterdrop
IPS capacitive screen, 1600*720px,
500cd/m2 |
| Processor |
Intel
JASPER LAKE N5100 quad core, 2.8GHz; GPU: Intel UHD
Graphics 620 |
| RAM |
8GB
LPDDR4 |
| ROM |
128GB EMMC, support Micro SD card up to
512GB maximally |
| Camera |
Double
cameras: 8MP AF rear camera with flashlight, 5MP front |
| Battery |
Removable
7.4V/4000mAh Li-Polymer battery |
| G-sensor |
Support |
| Speaker |
1W |
| Key |
Custom
buttons*2, Power key*1, Volume key+/-*1 |
| NETWORK & CONNECTIVITY |
| Bands |
2G
GSM900/1800MHz |
| 3G WCDMA850/900/2100MHz |
| 4G FDD-LTE B1/B3/B7/B8/B20, TDD-LTE: B40 (American Bands Optional) |
| WiFi |
IEEE
802.11a/b/g/n/ac, support 2.4G/5.8GHz dual band WiFi |
| BT |
V5.0 (BLE), transmission distance: up
to 10 meters |
| GNSS |
Support
GPS/GLONASS |
| I/O INTERFACES |
| TF card slot |
*1 |
| Nano SIM card slot |
*1 |
| USB Type-A 3.0 |
*1 |
| USB Type-C 2.0 |
*1, support OTG |
| Pogo Pin |
*1 |
| RELIABILITY |
| Waterproof |
IP67
/ MIL-STD-810H |
| Drop-proof |
1.5
Meters drop |
| Electrostatic discharge |
±
8KV contact discharge, ± 10kV air discharge |
| Temperature range |
Operating:
'-20 °C to 60 °C, storage: '-30 °C to 70 °C |
| Humidity range |
95%
Non-Condensing |
| OPTIONAL FEATURES |
| 2D barcode scanning |
Optional,
(Honeywell N3680, 30 times/s) |
| NFC |
Optional,
support ISO/IEC 14443A/14443B/15693/18092/mifare protocol) |
| ACCESSORIES |
| 45W PD3.0 USB Charger |
*1 |
| Type-C USB data Cable |
*1 |
| Hand-strap |
Optional |
| Docking Charger |
Optional |
| Vehicle Mount |
Optional |
| Protective film |
Optional |
| Leather Cover |
Optional |
